Metal Plating: A Comprehensive Guide

Metal plating is a manufacturing process in which a thin layer of metal is applied to the surface of a workpiece. This layer, or coating, can be achieved through various methods, but common techniques include electroplating, electroless plating, and immersion plating. The purpose of metal plating is often to improve the appearance, corrosion resistance, wear resistance, or electrical conductivity of the substrate material. As an integral part of modern manufacturing and finishing industries, metal plating finds applications across numerous sectors including automotive, electronics, aerospace, and jewelry making.

What Is Electroplating?

Electroplating is a manufacturing process that involves the deposition of a metal coating on an object by using an electrical current. The procedure typically requires an electrolyte, which is a conductive solution containing the metal ions intended for plating. The object to be plated serves as the cathode, while the anode consists of the plating metal. When electricity is applied, metal ions in the electrolyte solution move towards the negatively charged cathode and are reduced to form a solid metal layer over it.

Key components in this process include the power supply that drives electrolysis, the carefully controlled bath composition to maintain the desired concentration of metal ions and additives that enhance various properties like brightness or grain structure. Throughout electroplating, parameters such as temperature, current density, and plating time must be monitored and adjusted to achieve precise deposition characteristics.

In practical terms, electroplating enhances aesthetic appeal through shiny or reflective finishes but also imparts vital functional attributes such as corrosion resistance, increased hardness, improved electrical conductivity or wear resistance. It’s utilized across numerous industries including automotive, electronics, jewelry making and aerospace for its ability to extend lifespan and performance of components without significantly increasing their bulk or weight.

How To Do Metal Plating

1. Prepare the Substrate:
   • Begin by thoroughly cleaning the substrate to remove any dirt, grease, or existing oxide layers that may interfere with the plating process. The cleaning method may vary depending on the material being plated.
2. Set Up Electrolyte Bath:
   • Prepare an electrolyte solution containing positively charged metal ions of the type desired for plating. Ensure that the solution is suitable for the specific plating process.
3. Assemble Electroplating Setup:
   • Place the cleaned substrate in the electrolyte bath.
   • Install an anode, typically made of the same metal that will be used for plating, in the bath. This anode will provide a source of metal ions for plating.
4. Apply Electric Current:
   • Connect the substrate to the negative electrode (cathode) and the anode to the positive electrode.
   • Apply a direct current across the setup. This will initiate the electroplating process.
5. Electroplating Process:
   • As the electric current flows through the circuit, positively charged metal ions in the electrolyte solution acquire electrons (reduction process) and deposit onto the surface of the substrate. This forms the metal plating.
6. Control Parameters:
   • Monitor and control various parameters such as voltage, current density, temperature, agitation levels, and plating time. Adjust these parameters to achieve the desired coating thickness and quality.
7. Rinse and Clean:
   • After achieving the desired plating, remove the substrate from the electrolyte bath.
   • Rinse the electroplated parts with water to remove any remaining traces of the electrolyte solution.
8. Post-Plating Treatments (Optional):
   • Depending on the specific requirements, you may choose to apply post-plating treatments like passivation or conversion coating to enhance the appearance or protective properties of the plated metal.

Electroplating Vs. Electroforming

Coating Vs. Plating

Electroplating Material Options

The choice of material for electroplating is instrumental in determining the properties and applicability of the coated layer. Common materials used for electroplating include zinc, cadmium, chrome, nickel, copper, gold, silver, tin, and rhodium. Each of these metals offers unique qualities that cater to specific industrial needs.

Zinc Plating

Zinc plating stands out as a highly sought-after method of electroplating where a thin layer of zinc is bonded to the surface of a metal workpiece. This process serves as an economical yet effective strategy for protecting the underlying metal from corrosion—a major culprit in the deterioration of metals. When zinc is exposed to the atmosphere, it reacts to form zinc oxide, which further reacts with water to produce zinc hydroxide. These compounds shield the base metal by forming a barrier against corrosive substances.

The inclusion of various additives can enhance specific attributes in zinc plating such as brightness or smoothness, and post-plating treatments like chromate conversion coatings increase corrosion resistance even further. Moreover, these conversion coatings can be clear or colored, thereby adding an aesthetic dimension to the functional benefits.

In terms of process mechanics, the items to be plated are meticulously cleansed and then submerged into an electrolyte solution containing zinc ions. Direct current is applied, leading to zinc ions being drawn out of the solution and depositing onto the electrically conductive substrate. Thickness control is paramount; this is achieved through regulated current density and plating time ensuring fit-for-purpose specifications are attained.

Although typically less expensive than other metal plating types like gold or silver, zinc plating nonetheless provides substantial durability and aids in prolonging part life span. The technique also exhibits a relatively lower environmental impact compared with cadmium or lead platings.

Utilized across various industries including automotive, electrical components manufacturing, and hardware tool production—zinc plating finds its applicability not just due to its protective qualities but also for decorative purposes thanks to its bright and attractive finish.

Cadmium Plating

Cadmium plating is a process that involves the electrodeposition of cadmium onto a substrate, usually metal, to provide enhanced properties such as corrosion resistance, conductivity, and wear resistance. This type of plating is especially valued in the aerospace industry due to its ability to resist corrosion even in high-saline environments or against alkaline and sulfide corrosion. Cadmium also has a relatively low coefficient of friction which makes it an excellent choice for components that are subject to sliding wear.

The application of cadmium plating is performed through an electroplating process where the item to be plated serves as the cathode in an electrolytic cell. The cadmium metal is often suspended in solution form as cadmium salts within an electrolyte bath comprising acids and various additives to enhance adhesion and final finish quality. When electrical current passes through the cell, cadmium ions migrate from the solution to deposit on the surface of the cathode (the part being plated), thus creating a thin, uniform metallic coating.

Despite its beneficial attributes, cadmium plating carries significant environmental and health concerns due to the toxicity of cadmium. It is classified as a carcinogen by several health agencies. As such, safety precautions must be rigorously adhered to during handling and processing. Additionally, alternatives are increasingly sought after in many industries with restrictions tightening on its use.

In scenarios where cadmium is utilized, it’s crucial for adherence not only to performance specs but also regulatory standards ensuring safe operation and environmental protection. This has led industries employing this method towards strict waste management procedures and replacement with less hazardous substances wherever feasible while still trying to match or exceed performance requirements formerly met by cadmitted substrates.

Chrome Plating

Chrome plating involves submerging the item into a chromic acid solution and applying an electrical current, which causes the chromium ions in the solution to bind to the surface, resulting in a highly reflective and corrosion-resistant finish.

The overall quality and characteristics of chrome plating depend largely on factors such as the base material, the thickness of the plating, and pre- and post-plating processes. Typically, there are two types of chrome plating: decorative and hard. Decorative chrome provides aesthetic appeal along with some resistance to corrosion, while hard chrome is used for its durability and wear resistance.

In practice, successful chrome plating requires thorough cleaning and preparation of the items before they enter the bath; contaminants on the surface can prevent proper adhesion or result in flaws in the finished coating. Additionally, careful control over time spent in the bath, temperature settings, electrical current densities, and consistent chemical composition are essential to achieve desired outcomes with uniform coverage.

Although aesthetically pleasing due to its shiny finish that resists tarnishing, there are environmental concerns associated with chrome plating. Chromium compounds involved in this process can be toxic if not managed properly. Consequently, regulations have tightened around waste handling from chrome plating facilities to mitigate health risks and environmental impact.

Nickel Plating

Nickel plating is widely adopted due to its ability to protect and improve the appearance of various metals. Nickel creates a surface that can resist corrosion, enhance wear resistance, and increase surface thickness. Additionally, it provides a lustrous and decorative finish to items.

The electroplating of nickel requires specific conditions: an electrolyte bath containing a nickel salt solution, usually nickel sulfate or nickel chloride, combined with other chemicals to ensure proper plating. The object being plated serves as the cathode within an electrical circuit, while anodes made of nickel release ions into the solution under the influence of electrical current. This process ensures that the ions plate evenly on the object’s surface.

Critical factors in nickel plating include maintaining specific bath temperatures and pH levels, as well as controlling current density to achieve desired results without defects like pitting or dullness. Standard temperatures for successful nickel plating range from 45°C to 60°C, while pH levels are typically kept between 4 and 4.5.

Nickel can be plated on various base materials including steel, copper, brass, and sometimes aluminum after proper surface preparation such as cleaning and striking. Precise control during the plating process can create varying degrees of brightness or even semi-bright finishes depending on intended use.

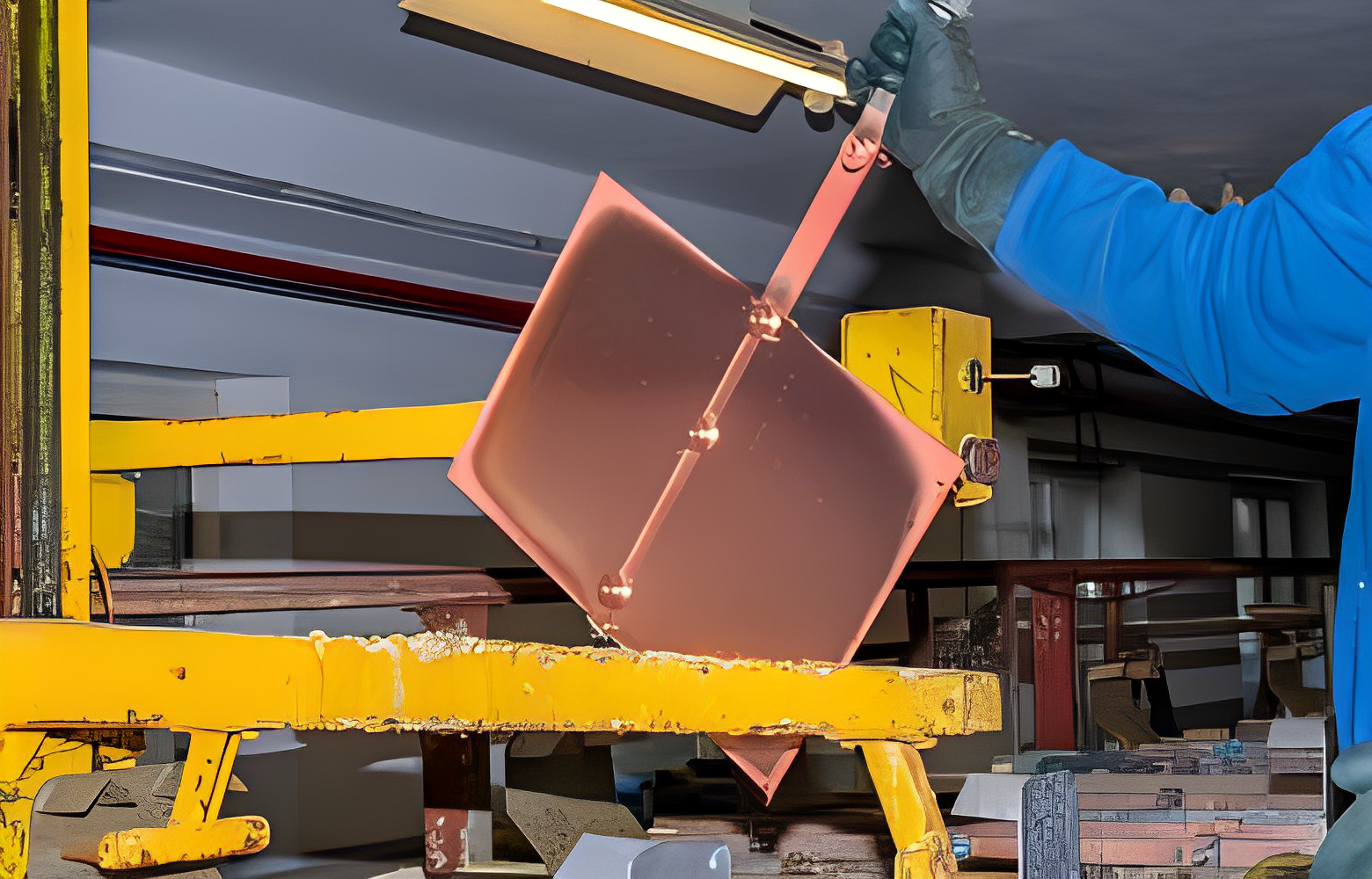

Copper Plating

Copper plating procedure typically requires the item to be plated, usually made from metal or conductive surfaces, to act as a cathode. An electrolyte solution rich in copper ions is used, wherein these ions are transferred and deposited onto the surface of the item when electrical current is applied.

Copper’s excellent thermal and electrical conductivity characteristics make it highly sought-after for plating purposes. Besides improved conductivity, copper plating provides anti-bacterial properties and enhances adhesion for further plating processes. It also serves to protect the underlying metal from corrosion and wear.

The process commences with cleaning and preparing the surface of the substrate to remove any contaminants that could impair adhesion or quality of the copper layer. This step may include polishing, stripping, or etching depending on the initial condition of the part’s surface.

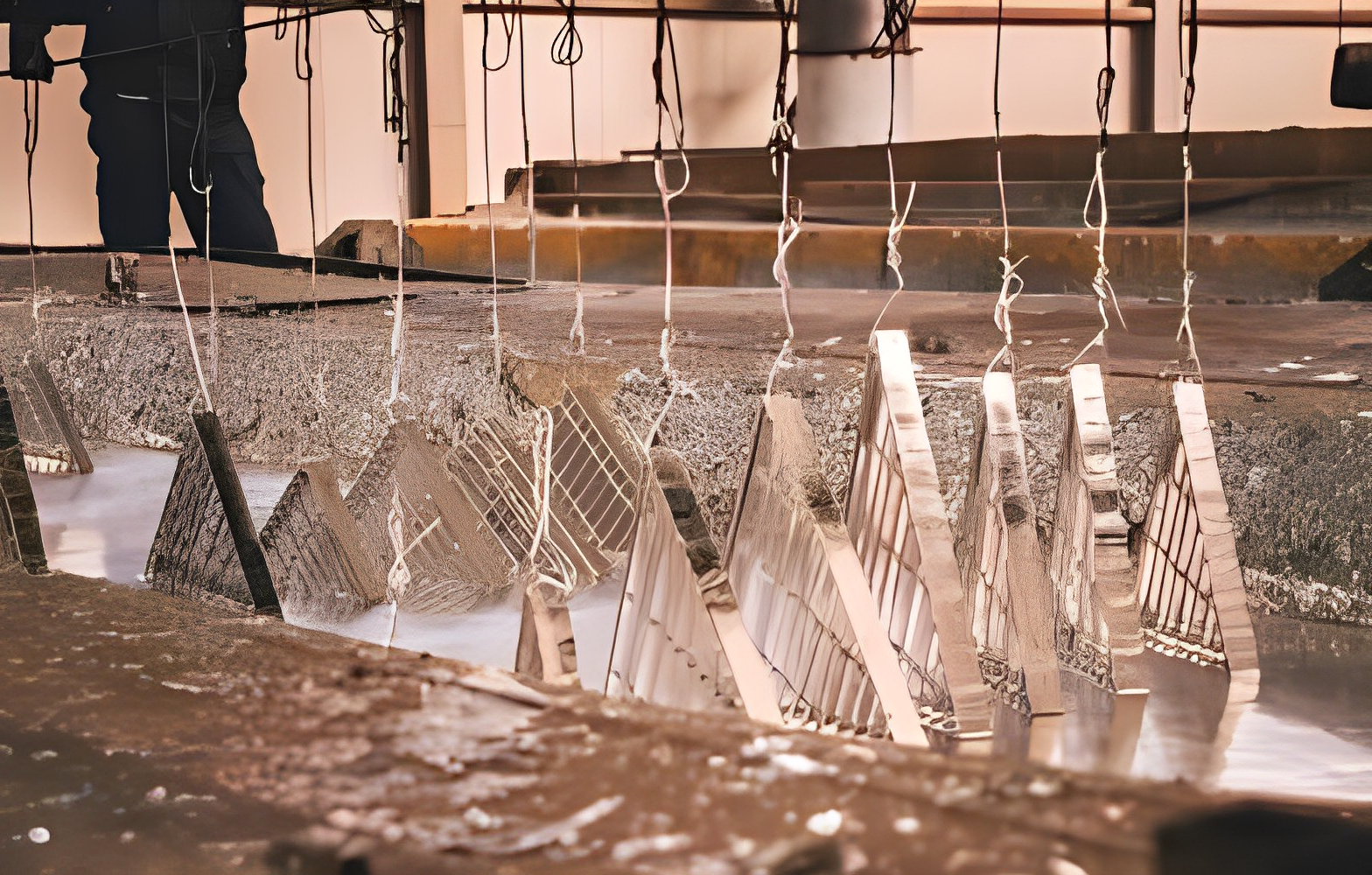

In electroplating facilities, racks or barrels are utilized to hold and rotate parts during plating which ensures uniform coverage. The current density, temperature of electrolyte solution, and time spent in the bath are closely regulated to achieve consistent results. After plating is complete, items undergo rinsing sequences followed by drying.

The thickness of copper plating is variable and designed to fit specific applications; thin coats often suffice for decorative purposes whereas thicker layers might be mandated for industrial components subjected to stressful environments.

Gold Plating

Gold plating process is significant for its ability to provide objects with an attractive appearance as well as enhance their resistance to corrosion and wear. Gold, known for its excellent conductivity and resistance to oxidation, makes gold-plated components desirable in electrical connectors and printed circuit boards.

When executing the gold plating process, a range of factors play crucial roles in determining the quality of the outcome. The thickness of the gold layer typically ranges from 0.17 to 2.5 microns and can be adjusted depending on intended use or cost considerations. Two major types of gold plating exist—soft pure gold plating and hard gold plating; each serves different application needs due to variations in hardness and purity.

Soft gold plating uses the highest purity level of gold, which results in a very ductile finish suitable for wire bonding in semiconductor applications. Conversely, hard gold plating incorporates additional alloying elements like cobalt or nickel to increase durability, making it ideal for high-wear areas such as electrical switch contacts.

The process involves preparing the base material by cleaning and sometimes applying intermediate layers for enhanced adhesion before immersing into a bath containing a gold-based electrolyte solution. Electrical current is then applied to facilitate the movement of gold ions onto the metallic surface creating a secure coating that combines both physical allure and functional utility.

Despite its impressive attributes, consideration must be given to factors such as cost implications due to high material prices; potential impacts on solderability; issues associated with stress-induced cracking at higher thickness levels; and environmental concerns regarding disused electronic devices with complex recovery processes needed for precious metals like gold.

Silver Plating

Silver plating procedure involves submerging the target item into a solution containing silver ions and using an electrical current to deposit the silver ions onto the base material. The key purpose of silver plating is to provide electrical conductivity, reflectivity, and an enhanced appearance to components.

The advantage of using silver for plating stems from its excellent electrical and thermal conductivity properties, which make it highly sought after in electronics and high-frequency RF applications. Additionally, silver’s natural antibacterial and antifungal properties confer added value in medical and food processing industries where hygiene is paramount.

In terms of aesthetics, items that undergo silver plating exhibit a lustrous sheen typical of pure silver – contributing both beauty and value. Silver also provides a degree of tarnish resistance, although not as robust as some other metal coatings; therefore, it’s often used with a lacquer or other protective topcoat when extended durability against corrosion is required.

From industrial connectors to fine flatware and jewelry, silver plating finds varied applications. While being one of the more costly precious metals used in plating, its benefits can justify the expense for many projects. However, thickness plays a critical role in dictating both the performance characteristics and cost-effectiveness. Thus precision control during the electroplating process is essential to achieve the desired outcome without unnecessary depletion of material resources.

Tin Plating

Tin plating, or tinning, is to be plated with tin is usually made cathodic, that is, connected to the negative terminal of a power supply while the tin anodes are connected to the positive terminal. An electrolyte solution containing tin salts facilitates the flow of electric current and the subsequent deposition of tin onto the base material.

The appeal of tin plating stems from its excellent conductivity, non-toxicity, and excellent solderability, making it ideal for applications in electronics and food processing equipment. Furthermore, tin’s resistance to corrosion and oxidation also adds to its valuable industrial qualities. During the plating process, factors such as current density, temperature of the plating solution, and time influence the quality and characteristics of the finish.

There are two primary types of tin plating – bright tin and matte tin. Bright tin offers a reflective finish due to added brightening agents while matte finishes are more subdued without additional luster but provide superior solderability since they do not contain organic additives.

Despite its advantages, working with tin demands consideration for potential issues such as whisker growth—a phenomenon where long filamentary crystals develop and which may lead to electrical shorts in some electronic applications if not properly managed.

As for maintenance; regular cleaning using mild detergents followed by thorough rinsing helps preserve the integrity and appearance of tin coatings over time. Ensuring careful handling can mitigate against damage since harsh impacts or excessive bending might fracture or delaminate the coating from its substrate especially when applied over softer metals.

Rhodium Plating

Rhodium plating is a specialized process that provides an exceptional finish to various substrates, most notably in jewelry. It involves applying a thin coating of rhodium, a rare and valuable silvery-white metal, to the surface of another metal through electroplating. This layer imparts not only a reflective white sheen but also remarkable durability and tarnish resistance. Rhodium plating can be applied to numerous base metals such as gold, silver, and platinum to enhance their appearance and longevity.

The technical procedure for rhodium plating involves immersing the substrate into a rhodium-plating solution containing a mix of rhodium salts and other chemicals. An electric current is then passed through the solution using the substrate as the cathode and a sacrificial anode made usually of platinum or titanium. The current causes rhodium ions to deposit onto the metallic surface in a uniform layer that generally ranges from 0.75 to 1.0 microns in thickness. The specific parameters like voltage, time, and temperature are meticulously controlled to achieve the desired quality of coating.

Attributes that make rhodium plating highly sought after include its hypoallergenic properties — crucial for those sensitive to other metals — and its ability to resist scratches. Consequently, it serves not only aesthetic purposes but also functional protection against wear and corrosion for jewelry pieces. Moreover, unlike many other metals used in electroplating, rhodium does not dull over time hence ensuring long-lasting brilliance without frequent upkeep or re-plating.

Nonetheless, due to its hardness and brittleness when compared with underlying metals like gold or silver, working with rhodium requires precision during both application and afterwards during regular use—especially since extreme impacts can cause cracks in the plated layer revealing the less pristine base metal below. The impeccable results of rhodium plating justify its popularity despite these challenges; when skillfully applied on high-end jewelry or select industrial components, it elevates both their performance attributes and visual allure markedly.

The Benefits Of Electroplating

• Enhanced Durability: Electroplating prolongs the lifespan of metal objects by providing resistance to corrosion, wear, and tear.
• Increased Hardness: It can make softer metals more durable, suitable for industrial and high-wear environments.
• Improved Electrical Conductivity: Metals like gold and silver are plated onto electrical connectors to ensure reliable signal transmission.
• Visual Appeal: Electroplating with metals like gold, silver, and chrome enhances the aesthetic appeal of products.
• Uniform Coverage: It creates a consistent layer even on complex geometries.
• Lowered Friction Coefficients: Electroplated coatings reduce friction, facilitating smoother operation of mechanical components.
• Antibacterial Properties: Some platings offer hygiene benefits, making them ideal for medical devices and food handling equipment.
• Cost-Effectiveness: Electroplating allows less expensive metals to be used as substrates with protective or aesthetically pleasing surfaces applied only where necessary.

The Limitations Of Electroplating

• Limited control over uniformity of metal deposition: Achieving consistent layer thickness, especially on complex shapes, can be challenging, leading to areas of weak plating and potential corrosion or wear over time.
• Environmental and health concerns: Electroplating often involves toxic heavy metals and hazardous chemicals, such as cadmium, which can pose serious environmental and health risks if not handled correctly. Compliance with regulations and appropriate waste disposal methods increase operational costs.
• Requirement of a conductive substrate: Non-conductive materials like some plastics cannot be plated without complex pre-plating processes like surface sensitization or conductive painting, adding extra steps and cost.
• Stress cracking and hydrogen embrittlement: Electroplated coatings are prone to stress cracking due to hydrogen embrittlement, requiring post-plate baking to counteract this, which adds extra processing time and cost.
• Issues with process control and reproducibility: Despite technological advancements, maintaining tight tolerances for thickness, adhesion strength, and alloy composition remains a challenge in many plating applications.
• Limitations in size capacity of plating baths: The size capacity of plating baths can restrict the dimensions of parts that can be plated at any one time, making it difficult or impossible to plate large or irregularly shaped items uniformly.

Applications Of Electroplating

Is Metal Plating Durable?

The durability of metal plating depends on several factors including the type of metal used, the thickness of the plating, the quality of the substrate material, and the conditions to which the plated item is subjected.

Metal types like zinc, gold, nickel, and chrome are popularly used for their desired properties. Gold plating boasts excellent corrosion resistance and electrical conductivity, making it durable in electronic applications. Nickel offers a hard-wearing finish suitable for both decorative and protective purposes.

The thickness of the plating also plays a critical role in its durability. A thicker coating typically signifies longer-lasting wear resistance. However, thicker layers may be more susceptible to chipping if the underlying surface isn’t properly prepared or if there’s thermal or physical mismatch between materials.

Surface preparation before plating is vital for adhesion; poor treatment can lead to peeling or flaking which compromises durability. Post-plating treatments such as passivation or sealants can enhance longevity by providing additional protection against environmental factors.

In terms of conditions faced by plated objects, exposure to chemicals, temperatures extremes, abrasion—all these affect their resilience over time. For instance, cadmium plating provides excellent corrosion resistance but may become brittle when exposed to high temperatures.

Professionals in applicable industries need to consider these aspects when deciding on how to approach metal plating for parts expected to endure harsh service environments or for products where long-term aesthetic appeal is necessary.

What Is Electroplating (3d Printed) Plastic Parts

Electroplating on 3D printed plastic parts involves depositing a metal coating on the surface of printed objects to enhance their appearance and functional properties. This process is not inherently different from traditional electroplating methods, yet it requires certain preparatory steps since plastic substrates do not conduct electricity naturally.

To initiate electroplating, 3D printed parts must first be subjected to a series of treatments that render them electrically conductive. This typically includes surface cleaning, etching, and the application of a conductive paint or a chemical activation bath.

During electroplating, the prepared plastic part is submerged in an electrolyte solution containing the desired metal ions. A power supply introduces a steady current which causes these ions to adhere to the object’s surface, creating a thin, uniform metallic layer. Common metals used for plating include gold, silver, nickel, copper, and chrome; each conferring its own set of attributes from aesthetic enhancements to improved electrical conductivity and resistance to corrosion.

One appeal of this technique is its ability to impart metal characteristics onto lightweight plastics, marrying the best properties of both materials. Additionally, plated 3D printed parts often find applications where electromagnetic shielding is required or in scenarios demanding wear-resistant surfaces.

As advantageous as this process might be for various industrial sectors including consumer electronics and automotive components manufacturing, it does present challenges in achieving adherence and longevity equivalent to those seen in their fully metallic counterparts.

Benefits of Electroplating (3D Printed) Plastic Parts

• Enhanced Surface Properties: Electroplating 3D printed plastic parts improves their surface properties for aesthetic and functional purposes.
• Improved Durability: Electroplating adds a tough, protective outer layer that enhances wear resistance, guarding against scratches, abrasion, and corrosion.
• Electrical Conductivity: Plastics are naturally insulative, but electroplating with metals like copper or gold imparts excellent conductivity, making them suitable for electronic components and connectors.
• Aesthetics: Electroplating can transform the appearance of plastic parts with metallic finishes like gold, silver, or copper, appealing to industries requiring an attractive metallic look without added weight or cost.
• Thermal Properties: Certain metals used in electroplating can improve the thermal properties of plastic parts, allowing them to dissipate heat more efficiently.
• Structural Integrity: Electroplating adds strength and rigidity to delicate plastic components, increasing their structural integrity and lifespan.
• Hybrid Solutions: Electroplating combines the versatility of additive manufacturing with the desirable traits of metal surfaces, creating customized solutions for modern applications.

In Conclusion

In summary, metal plating is a critical manufacturing process that enhances the durability, conductivity, and aesthetic appeal of components across various industries.
